Foshan Xinliheng Stainless Steel Tube Factory

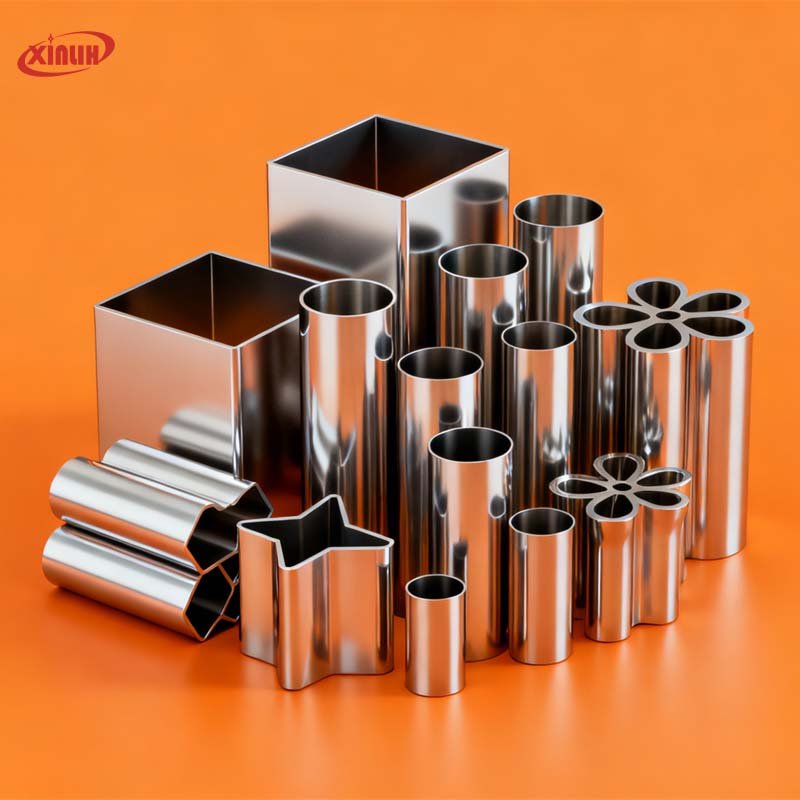

High-Precision Stainless Steel Special-Shape Tubes (SUS201 / SUS304)
Tight Tolerances. Dual Material Options. Engineered for Machinery & Architectural Excellence.
🔍 When Standard Tubes Don’t Fit — Precision Meets Performance
±0.05mm Accuracy. Industrial Strength. Decorative Finish. Built for Demanding Applications.
Introducing High-Precision Stainless Steel Special-Shape Tubes —
engineered for projects where dimensional accuracy, structural integrity, and surface perfection are non-negotiable.
Available in SUS201 (cost-effective) or SUS304 (premium corrosion resistance), our custom-profile tubes are manufactured to tight tolerances (±0.05mm–±0.1mm) using advanced cold drawing, roll forming, and CNC shaping technologies.
Perfect for precision machinery, automation systems, handrails, balustrades, and high-end architectural details, these tubes deliver consistent performance in both industrial hardware and aesthetic-driven construction.
✨ Not just a tube — a precision component.
✅ Why Choose Our High-Precision Stainless Steel Profile Tubes?
1. Ultra-Tight Tolerances – Built for Engineering Excellence
We specialize in high-accuracy profiles that ensure seamless integration into complex assemblies:
| Parameter | Standard Tolerance | High-Precision Option |
|---|---|---|
| Outer Diameter / Width | ±0.1mm | ±0.05mm |
| Wall Thickness | ±0.08mm | ±0.03mm |
| Straightness | ≤1.5mm/m | ≤0.8mm/m |
| Length | ±1mm | ±0.5mm |
🔧 Ideal for:
- Linear guide rails
- Sensor mounting frames
- Robotic arms
- Sealing channels
- Hidden structural supports
✅ All tubes undergo 100% dimensional inspection via laser micrometers and CMM (Coordinate Measuring Machine).
2. Dual Material Options – Optimize for Function & Budget
| Grade | Best For | Corrosion Resistance | Cost Efficiency |
|---|---|---|---|
| SUS201 | Indoor machinery, dry environments, cost-sensitive industrial parts | Moderate | ✅✅✅ (Most Economical) |
| SUS304 | Outdoor structures, food processing, pharmaceuticals, marine interiors, high-humidity zones | High | ✅✅ (Premium Durability) |
💡 Use 201 for internal machine frames. Use 304 for visible, exposed, or hygienic applications.
3. Multi-Application Versatility – From Factory Floor to Luxury Space
Our high-precision tubes serve two high-value markets with one product line:
⚙️ Mechanical & Industrial Hardware Applications
- Automation equipment frames
- Conveyor support rails
- Hydraulic & pneumatic cylinder guides
- Enclosure profiles for electronics
- Medical device components
- Automotive sensor mounts
🏗️ Architectural & Decorative Engineering
- Precision handrail connectors
- Hidden mounting rails for glass or panels
- LED light channels with tight fit
- Luxury elevator trims
- Designer furniture joints
- Seamless wall/ceiling runners
✨ Same tube. Same precision. Two worlds of application.
4. Custom Shapes – Beyond Round & Square
We manufacture any cross-sectional profile to your exact design:
| Shape Type | Examples |
|---|---|
| Standard Profiles | Round, Square, Rectangular, Flat |
| Custom Industrial | D-Shaped, T-Beam, U-Channel, I-Section |
| Decorative-Ready | Concave, Fluted, Wave-Edge, Asymmetric |
| Hybrid & Functional | Multi-cavity, snap-fit, cable-integrated |
👉 Send your CAD file, DXF, or sketch — we’ll design the tooling and deliver samples in 7–10 days.
5. Premium Surface Finishes – For Function & Aesthetics
Choose from a range of finishes to match your application:
| Finish | Appearance | Best For |
|---|---|---|
| 2B (Standard) | Smooth, matte | Internal machine parts |
| BA (Bright Annealed) | Reflective, clean | Precision equipment |
| Hairline Brushed (HL #180–320) | Elegant, scratch-resistant | Handrails, interiors |
| Mirror Polished (8K) | Chrome-like shine | Luxury displays, elevators |
| PVD Color Coating | Gold, Black, Rose Gold, Bronze | Branded environments |
| Electropolished | Ultra-smooth, hygienic | Food, pharma, medical |
✅ All finished surfaces include anti-scratch protective film.
6. Quality & Traceability You Can Trust
- Material Standard: ASTM A554, A312, JIS G3446, ISO 1127
- Testing: Eddy Current Testing (ECT), Dimensional Inspection, Salt Spray Test (optional)
- Certifications: ISO 9001, SGS, RoHS
- Traceability: Full batch tracking with MTR (Mill Test Report) available
- Packaging: Anti-rust paper + plastic film + wooden crate (export-safe)
🔧 Technical Specifications
| Parameter | Details |
|---|---|
| Material | SUS201 or SUS304 |
| Shape Range | Round, Square, Flat, D-Shaped, T-Beam, U-Channel, Fully Custom |
| Size Range | OD/Width: 6–120mm; Wall: 0.5–5.0mm |
| Length | 1m, 2m, 3m, 4m, 5.8m, 6m (cut-to-length, ±0.5mm) |
| Tolerance | ±0.05mm (OD), ±0.03mm (wall), ≤0.8mm/m (straightness) |
| Process | Cold Drawn (CD), Roll Forming, CNC Shaping |
| Surface Finish | 2B, BA, HL, 8K, PVD, Electropolished |
| Optional | MTR, hydro test, laser marking, OEM branding |
💬 Customer Feedback
“We needed a D-shaped tube with ±0.05mm tolerance for a robotic arm — they delivered perfect consistency. Now it’s our standard supplier.”
— James, Automation Engineer, Germany
“Used 304 hairline-finished flat tubes for a boutique hotel handrail. The precision and finish were flawless — no rework needed.”
— Sophia, Project Manager, Singapore
📞 Request a Free Sample & Quote Today!
✅ Send us your CAD or design idea – we’ll provide a digital mock-up + technical quote
✅ Free sample (100–200mm) with protective film
✅ Low MOQ: 50 pcs per profile (ideal for prototyping)
✅ OEM/ODM supported – private label, custom packaging, logo engraving
👉 Contact Us Now or Email: sales@xlhsteel.com
📞 +86 133 6030 1537 | 🌐 www.xlhsteel.com
🌐 Why Choose Our High-Precision Stainless Steel Tubes?
- ✅ True High-Precision – Tolerances down to ±0.05mm
- ✅ Dual Application – Ideal for both mechanical hardware and decoration engineering
- ✅ Material Flexibility – 201 for cost, 304 for durability
- ✅ Fast Sampling & Tooling – Rapid prototyping for quick project start
Precision isn’t optional. It’s engineered.
