201 / 304 Tubo cuadrado sin costura de acero inoxidable - Fábrica de tubos de acero inoxidable de Foshan Xinliheng

Tubo cuadrado de acero inoxidable/

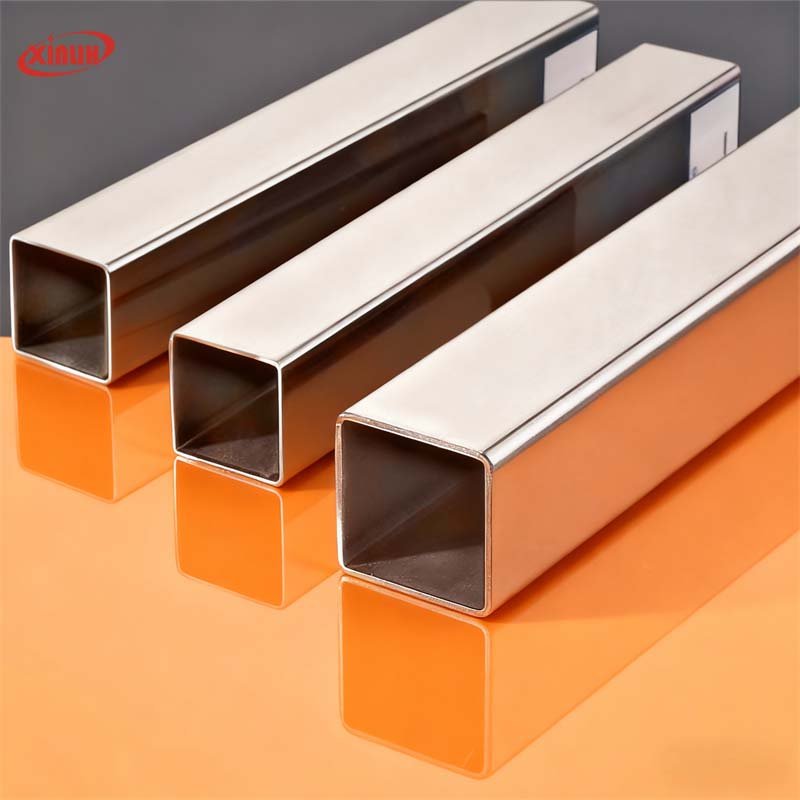

201 / 304 Tubo cuadrado sin costura de acero inoxidable

Especificaciones del producto

ParámetroDetalles
MaterialSUS201 o SUS304 (1.4301 / 06Cr19Ni10)
FormaSquare Tube – Seamless
Outer Size (milímetros)10×10 – 100×100
Espesor de la pared1.0mm – 6.0mm
Longitud1metro, 2metro, 3metro, 4metro, 5.8metro, 6metro (costumbre)
ProcesoSeamless (Hot Extruded + Estirado en frío)
Acabado superficial2B (Pickled), BA (Bright), 8K Mirror, Hairline HL
Tolerancia±0.1mm (size), ±0.08mm (muro)
StandardsASTM A312, ASTM A554, JIS G3463, ISO 1127
OpcionalMTR, hydro test, laser marking, OEM packaging

  • Detalles del producto

201 / 304 Tubo cuadrado sin costura de acero inoxidable

Seamless Strength. Elección de material dual. Engineered for Performance.

🔲 No Weld Seam. Maximum Integrity. Elegir: Cost-Effective 201 o Premium 304.

Presentando 201 / 304 Stainless Steel Seamless Square Tubes —
precision-engineered seamless structural profiles designed for high-pressure, high-strength, and critical applications dónde uniformity, durability, and reliability are non-negotiable.

Unlike welded tubes, our seamless square tubes are formed in a single extrusion process — eliminating weak points along the weld line. This results in:

  • ✅ Higher burst pressure resistance
  • ✅ Superior structural integrity
  • ✅ Uniform wall thickness & dimensional accuracy
  • ✅ Ideal for load-bearing, hydraulic, and precision machinery use

Disponible en SUS201 (economical) o SUS304 (premium corrosion resistance), these tubes offer the perfect balance of performance, cost, and longevity for industrial, mechanical, and architectural projects worldwide.


✅ ¿Por qué elegir nuestro? 201/304 Seamless Square Tubes?

1. True Seamless Construction – No Weak Points

  • Manufactured via hot extrusion + cold drawing – no weld seam
  • No risk of weld cracking, leakage, or uneven stress distribution
  • Perfect for high-pressure systems, structural frames, and dynamic loads
  • Smooth internal surface – ideal for fluid/gas transport or cable routing

2. Dual Material Options – Optimize Cost & Performance

CalificaciónMejor paraResistencia a la corrosiónRentabilidad
SUS201Indoor industrial use, ambientes secos, cost-sensitive projectsModerado✅ ✅ ✅ (Most Economical)
SUS304Outdoor exposure, humid conditions, food/pharma equipmentAlto✅✅ (Durabilidad superior)

💡 Elegir 201 for budget-friendly structural needs. Elegir 304 for long-term corrosion resistance and broader application range.

3. Dimensiones de precisión & Tight Tolerances

  • Size Range: 10×10mm – 100×100mm (outer dimensions)
  • Espesor de la pared: 1.0mm – 6.0mm
  • Longitud: 1metro, 2metro, 3metro, 4metro, 5.8metro, 6metro (corte personalizado a medida disponible)
  • Tolerancia:
    • Dimension: ±0.1mm
    • Espesor de la pared: ±0.08mm
    • Straightness: < 0.5mmm
  • Proceso: Hot Extruded → Cold Drawn (CD) for enhanced strength and finish

4. Available Surface Finishes

  • Pickled & Annealed (2B) – standard industrial finish, smooth and clean
  • Bright Annealed (BA) – reflective, low roughness, used in precision equipment
  • Polished (Mirror 8K or Hairline HL) – decorative-grade finish for visible applications
  • Oiled or Dry – anti-rust protection options

5. Rigorous Quality Control & Certificaciones

  • Standard Compliance: ASTM A554, ASTM A312, JIS G3463, ISO 1127
  • Testing Included:
    • Eddy Current Testing (ECT)
    • Hydrostatic Test (opcional)
    • Tensile Test
    • Flattening Test
    • Intergranular Corrosion Test (for 304)
  • Certificaciones: ISO 9001, SGS, RoHS
  • MTR (Informe de prueba del molino) provided with every batch
  • Embalaje: Anti-rust paper + plastic film + steel-banded wooden pallet (seguro para exportar)

🏭 Premium Applications

IndustriaCasos de uso
Industrial MachineryMachine frames, robotic arms, linear guides, jigs & fixtures
Hydraulic & Pneumatic SystemsFluid conveyance, cylinder components, high-pressure lines
Automotive & TransportationChassis parts, roll cages, interior support structures
Construction & ArchitectureLoad-bearing columns, structural supports, seismic bracing
Energy & UtilitiesSolar mounting systems, battery enclosures, pump frames
Food & Pharma EquipmentProcessing racks, conveyor frames, hygienic structures (304 only)

🔧 Especificaciones del producto

ParámetroDetalles
MaterialSUS201 o SUS304 (1.4301 / 06Cr19Ni10)
FormaSquare Tube – Seamless
Outer Size (milímetros)10×10 – 100×100
Espesor de la pared1.0mm – 6.0mm
Longitud1metro, 2metro, 3metro, 4metro, 5.8metro, 6metro (costumbre)
ProcesoSeamless (Hot Extruded + Estirado en frío)
Acabado superficial2B (Pickled), BA (Bright), 8K Mirror, Hairline HL
Tolerancia±0.1mm (size), ±0.08mm (muro)
StandardsASTM A312, ASTM A554, JIS G3463, ISO 1127
OpcionalMTR, hydro test, laser marking, OEM packaging

💬 Comentarios de los clientes

“We switched from welded to seamless 304 square tubes for our machine frames — zero failures after 18 months. Worth the investment.”
— Robert, Mechanical Engineer, Alemania

“Used SUS201 seamless tubes for indoor equipment. Strong, straight, y 20% cheaper than 304. Perfect for our budget.”
— Anita, Procurement Lead, India


📞 Solicite una muestra gratis & Cotizar hoy!

✅ Tell us your size, material, and finish – we’ll provide a fast, accurate quote
✅ Muestra gratis (100–200 mm) for quality & fit testing
✅ MOQ bajo: 50 piezas por tamaño (negotiable for trial orders)
✅ Compatible con OEM/ODM – etiqueta privada, custom lengths, logo engraving

👉 Contáctenos ahora o Correo electrónico: ventas@xlhsteel.com
📞 +86 133 6030 1537 | 🌐 www.xlhsteel.com


🌐 ¿Por qué elegir nuestro? 201/304 Seamless Square Tubes?

  • ✅ No Weld Seam = Higher Strength & Reliability
  • ✅ Elección de material dual – Save with 201 or Upgrade to 304
  • ✅ Precision Tolerances – Ideal for Engineering & Machinery
  • ✅ Global Standards Compliant – Trusted Quality Worldwide

Strength without compromise. Precision without seams.
